oled显示汉字字体 形状 使用
发布时间：2023年12月28日
oled模块的工作原理
oled的上方四个接口是IIC总线 通过IIC总线可以进行数据的传输 在OLED模块背后有一个芯片叫做SSD1306 这个芯片内部有1024个字节的RAM 对应到右边的小屏幕上就有1024个字节 一个字节八个bit位 每一个bit位就对应着一个小点 我们只需要往oled的RAM上写入数据就可以显示对应的字符和图片
OLED驱动简介
在单片机内部开一块buffer 也是1024kb的对应着oled屏幕 相当于一块画布 然后可以调用pal库的接口对oled画线等图案
OLED初始化
初始化屏幕就是 oled屏幕内部有一个芯片 芯片有一个SA0引脚 如果接地就为0 如果接高电平就为1
SA0接地为0 从机地址为0111100 接高电平就为0111101 我们的oled芯片是接地的所以SA0传入的值为RESET （0）
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
while(1)
{
}
}
绘制基本形状
在X和Y的方向上移动光标 就是X和Y坐标同时变化
画笔和画刷
如要画123和一个苹果 就是先画一个矩形 画笔和画刷都设置为白色就得到一个蓝色背景的矩形
然后绘画数字123 就是用黑色的画笔 透明的画刷 （这样就不会挡住后面的背景色了） 绘画苹果也是设置黑色画笔 透明画刷
画点
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
PAL_OLED_Clear(&holed);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,3);
PAL_OLED_SetCursor(&holed,29,32);
PAL_OLED_DrawDot(&holed);
uint32_t i;
for(i=1;i<8;i++)
{
PAL_OLED_MoveCursorX(&holed,10);
PAL_OLED_DrawDot(&holed);
}
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
画线
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
// PAL_OLED_Clear(&holed);
// PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,3);
// PAL_OLED_SetCursor(&holed,29,32);
// PAL_OLED_DrawDot(&holed);
// uint32_t i;
//
// for(i=1;i<8;i++)
// {
// PAL_OLED_MoveCursorX(&holed,10);
// PAL_OLED_DrawDot(&holed);
// }
//
// PAL_OLED_SendBuffer(&holed);
PAL_OLED_Clear(&holed);
PAL_OLED_SetCursor(&holed,17,20);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,1);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,2);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,3);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,4);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
// PAL_OLED_Clear(&holed);
// PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,3);
// PAL_OLED_SetCursor(&holed,29,32);
// PAL_OLED_DrawDot(&holed);
// uint32_t i;
//
// for(i=1;i<8;i++)
// {
// PAL_OLED_MoveCursorX(&holed,10);
// PAL_OLED_DrawDot(&holed);
// }
//
// PAL_OLED_SendBuffer(&holed);
PAL_OLED_Clear(&holed);
PAL_OLED_SetCursor(&holed,17,20);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,1);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,2);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,3);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_MoveCursorY(&holed,8);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,4);
PAL_OLED_DrawLine(&holed,PAL_OLED_GetCursorX(&holed) + 45,PAL_OLED_GetCursorY(&holed));
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE,1);
PAL_OLED_SetCursor(&holed,91,10);
PAL_OLED_LineTo(&holed,87,24);
PAL_OLED_LineTo(&holed,72,24);
PAL_OLED_LineTo(&holed,84,33);
PAL_OLED_LineTo(&holed,80,48);
PAL_OLED_LineTo(&holed,91,38);
PAL_OLED_LineTo(&holed,101,48);
PAL_OLED_LineTo(&holed,97,33);
PAL_OLED_LineTo(&holed,110,24);
PAL_OLED_LineTo(&holed,95,24);
PAL_OLED_LineTo(&holed,91,10);
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
画矩形和画圆
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
PAL_OLED_Clear(&holed);
PAL_OLED_SetCursor(&holed,0,0);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE ,1);
PAL_OLED_SetBrush(&holed,BRUSH_WHITE);//设置背景颜色
PAL_OLED_DrawRect(&holed,PAL_OLED_GetScreenWidth(&holed),PAL_OLED_GetScreenHeight(&holed));
PAL_OLED_SetPen(&holed,OLED_COLOR_BLACK ,1);
PAL_OLED_SetBrush(&holed,BRUSH_TRANSPARENT);
PAL_OLED_SetCursor(&holed,20,20);
PAL_OLED_DrawRect(&holed,40,20);
PAL_OLED_SetPen(&holed,OLED_COLOR_TRANSPARENT ,1);
PAL_OLED_SetBrush(&holed,BRUSH_BLACK);
PAL_OLED_SetCursor(&holed,70,20);
PAL_OLED_DrawRect(&holed,40,20);
PAL_OLED_SetPen(&holed,OLED_COLOR_TRANSPARENT ,1);
PAL_OLED_SetBrush(&holed,BRUSH_BLACK);
PAL_OLED_SetCursor(&holed,65,30);
PAL_OLED_DrawCircle(&holed,5);
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
显示文字
基本字符的显示
PAL_OLED_Clear(&holed);
PAL_OLED_SetCursor(&holed,5,20);
PAL_OLED_SetPen(&holed,OLED_COLOR_WHITE ,1);
PAL_OLED_SetBrush(&holed,BRUSH_TRANSPARENT);
PAL_OLED_DrawString(&holed,"Hello World");
PAL_OLED_SetCursor(&holed,5,30);
PAL_OLED_Printf(&holed,"Today is %02d/%02d/%02d",23,12,26);
PAL_OLED_SendBuffer(&holed);
文本框功能
改变字体
1.
复制粘贴到front文件夹

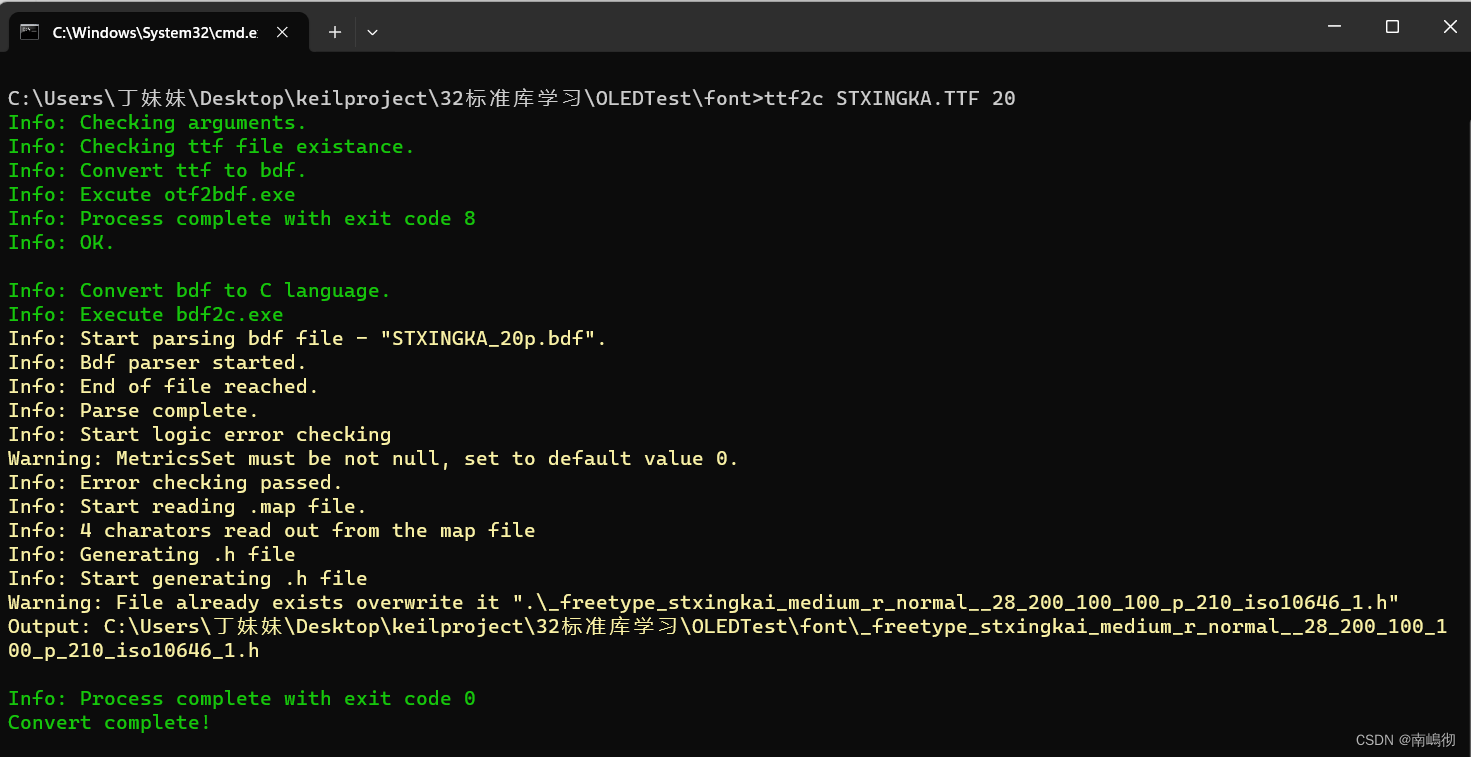

调出命令行
输入字体的文件名 在font后面输入完整的文件名（对应字体的文件名）按回车
生成一个头文件
引用头文件
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
#include "_freetype_stliti_medium_r_normal__28_200_100_100_p_230_iso10646_1.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
PAL_OLED_Clear(&holed);
PAL_OLED_SetFont(&holed,&_freetype_stliti_medium_r_normal__28_200_100_100_p_230_iso10646_1);
PAL_OLED_SetCursor(&holed,(PAL_OLED_GetScreenWidth(&holed) - PAL_OLED_GetStrWidth(&holed,"不吃牛肉")) /2,40);
PAL_OLED_DrawString(&holed,"不吃牛肉");
PAL_OLED_SetFont(&holed,&default_font);
PAL_OLED_SetCursor(&holed,(PAL_OLED_GetScreenWidth(&holed) - PAL_OLED_GetStrWidth(&holed,"Hello World"))/2,60);
PAL_OLED_DrawString(&holed,"Hello World");
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
显示图像
进入网站 把图片转化为二进制 就可以输出图片
https://javl.github.io/image2cpp/ (网站地址）
选择图片
声明一个数组用来缓存二进制
#include "stm32f10x.h"
#include "stm32f10x_pal.h"
#include "stm32f10x_pal_i2c.h"
#include "stm32f10x_pal_oled.h"
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
static const uint8_t image[] = {// 'huaqiang', 128x64px
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xf8, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xdf, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xf5, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xf8, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfd, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xf3, 0xff, 0xff, 0xf8, 0x9f, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xe5, 0xff, 0xff, 0xf8, 0x1f, 0x9f, 0xf0, 0x7f, 0xff, 0xff, 0xff, 0xff, 0x87, 0xff, 0xff, 0xff,
0xf1, 0xff, 0xff, 0xfc, 0x1f, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff, 0xc0,
0xe0, 0x3f, 0xff, 0xf8, 0x3f, 0xff, 0xf0, 0x3f, 0xff, 0xff, 0xff, 0xff, 0x3d, 0xff, 0xe2, 0x81,
0x08, 0x0f, 0xff, 0xe0, 0x03, 0xff, 0xfd, 0xbf, 0xff, 0xff, 0xff, 0xff, 0xf9, 0xf3, 0xc6, 0xc0,
0x00, 0x0f, 0xff, 0x80, 0x00, 0xff, 0xf8, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xe3, 0xe7, 0x83, 0xc2,
0x00, 0x0f, 0xfe, 0x00, 0x00, 0x3f, 0xf1, 0xdf, 0xff, 0xff, 0xff, 0xff, 0x17, 0xcf, 0xab, 0xf0,
0x00, 0x07, 0x0c, 0x00, 0x10, 0x3f, 0xd0, 0xff, 0xff, 0xff, 0xff, 0xff, 0x27, 0xcf, 0xdf, 0xf7,
0x00, 0x07, 0x04, 0x00, 0x00, 0x1c, 0x20, 0xb7, 0xff, 0xff, 0xff, 0xfe, 0x0f, 0x9f, 0xbf, 0xfe,
0x00, 0x07, 0xc0, 0x00, 0x00, 0x10, 0x00, 0x11, 0xff, 0xff, 0xff, 0xfc, 0x4f, 0x1e, 0x3f, 0xff,
0x00, 0x07, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x11, 0xff, 0xff, 0xff, 0xfc, 0x9f, 0x3a, 0x2f, 0xfb,
0x00, 0x07, 0xf0, 0x00, 0x00, 0x02, 0x00, 0x01, 0xff, 0xff, 0xff, 0xec, 0x1e, 0x78, 0x0f, 0xfd,
0x80, 0x0f, 0xf0, 0x00, 0x00, 0x02, 0x00, 0x07, 0xff, 0xff, 0xff, 0xfd, 0x36, 0x7c, 0x03, 0x7f,
0x84, 0x0f, 0xe0, 0x1f, 0xe0, 0x04, 0x0e, 0x07, 0xff, 0xff, 0xff, 0xfa, 0x3c, 0xf0, 0x03, 0xff,
0x84, 0x0f, 0xec, 0x90, 0x3c, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf2, 0x7c, 0xe4, 0x2b, 0xff,
0x00, 0x07, 0xfc, 0x04, 0x80, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf4, 0x5c, 0xc4, 0x23, 0xff,
0x00, 0x07, 0xc0, 0xf8, 0x00, 0x71, 0xff, 0xf7, 0xff, 0xff, 0xff, 0xf4, 0xff, 0xac, 0x14, 0x5f,
0x00, 0x07, 0xd0, 0x07, 0xf2, 0x06, 0x00, 0x0f, 0x03, 0x0f, 0xff, 0xac, 0x00, 0x14, 0x45, 0xff,
0xc0, 0x07, 0xff, 0x00, 0x00, 0x00, 0x00, 0x1f, 0x0f, 0xff, 0xff, 0xc8, 0x00, 0x54, 0x0c, 0x00,
0xc0, 0x00, 0xfe, 0x01, 0x00, 0x38, 0x00, 0x1f, 0xff, 0xff, 0xff, 0x70, 0x00, 0x50, 0x00, 0x00,
0x30, 0x03, 0xe0, 0x00, 0x00, 0xf8, 0x00, 0x1f, 0xff, 0xff, 0xfe, 0x7e, 0x00, 0x32, 0x3f, 0x7c,
0x00, 0x02, 0x38, 0x00, 0x00, 0x3e, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0x80, 0x03, 0xff, 0xf8,
0x00, 0x07, 0xf8, 0x9f, 0xd0, 0x3e, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x43, 0xf8, 0x03, 0xff, 0xe7,
0x80, 0x07, 0xf0, 0x1f, 0xf2, 0x04, 0xff, 0xf7, 0xff, 0xff, 0xfc, 0x20, 0xff, 0xc3, 0xff, 0x8f,
0x40, 0x07, 0xf0, 0xbf, 0xcc, 0x1c, 0xfd, 0xf1, 0xff, 0xff, 0xfd, 0x40, 0x00, 0xe0, 0xff, 0xff,
0x40, 0x07, 0xf1, 0x0f, 0xc6, 0x1c, 0xff, 0xd1, 0xff, 0xff, 0xfd, 0xa0, 0x40, 0x50, 0x79, 0xff,
0x40, 0x07, 0xf9, 0x3f, 0xe4, 0x1c, 0xe0, 0x17, 0xff, 0xff, 0xff, 0xf8, 0x01, 0xf0, 0x3f, 0xff,
0x40, 0x07, 0xf9, 0x3f, 0xe6, 0x3c, 0x87, 0x07, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x0f, 0xff,
0x58, 0x07, 0xfa, 0x90, 0x66, 0x38, 0x0f, 0x83, 0xdf, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x03, 0xff,
0x48, 0x07, 0xfb, 0x90, 0x06, 0x38, 0x07, 0xc3, 0xbf, 0xff, 0xfe, 0x91, 0xc6, 0x00, 0xbd, 0xff,
0x3c, 0x07, 0xfb, 0x94, 0x06, 0x78, 0x07, 0x83, 0x7f, 0xff, 0xfc, 0x00, 0x3f, 0x00, 0x38, 0x7e,
0xbc, 0x07, 0xff, 0xc2, 0x8e, 0x7c, 0x07, 0xc7, 0xff, 0xff, 0xf8, 0x10, 0x03, 0x00, 0x30, 0x43,
0x3c, 0x07, 0xfd, 0xc0, 0x16, 0x3c, 0x00, 0x01, 0xff, 0xff, 0xf8, 0x18, 0x00, 0x25, 0x40, 0x04,
0x7c, 0x07, 0xf8, 0x60, 0x08, 0x3c, 0x00, 0x00, 0x7f, 0xff, 0xfc, 0x18, 0x00, 0x02, 0x10, 0x18,
0x7e, 0x07, 0xfc, 0x3f, 0x80, 0x78, 0x08, 0x0f, 0xff, 0xff, 0xfc, 0x02, 0x00, 0x00, 0x10, 0x7b,
0xfe, 0x1f, 0xfc, 0x00, 0x00, 0x7f, 0x00, 0x1f, 0xff, 0xff, 0xfc, 0x00, 0x40, 0x00, 0x00, 0xfb,
0xfc, 0x0f, 0xfc, 0x00, 0x01, 0xff, 0x80, 0x3f, 0xff, 0xff, 0xfc, 0x00, 0x08, 0x00, 0x00, 0xfb,
0xff, 0xff, 0xf8, 0x00, 0x01, 0xff, 0xc0, 0x7f, 0xff, 0xff, 0xfc, 0x00, 0x01, 0x80, 0x00, 0xfb,
0xff, 0xff, 0xf8, 0x00, 0x02, 0x7f, 0xe4, 0x7f, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0xfb,
0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xc0, 0x7f, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x00, 0xe0, 0x00,
0xff, 0xff, 0xfc, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x00, 0x07, 0xe0,
0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x00, 0x00, 0x00,
0xff, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x00, 0x00, 0x00,
0xff, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x00, 0x00, 0x00,
0xff, 0xff, 0xff, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x01, 0x00, 0x00,
0xff, 0xff, 0xff, 0x80, 0x0b, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x40, 0x00, 0x01, 0x80, 0x00,
0xff, 0xff, 0xff, 0xe0, 0xfc, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x60, 0x00, 0x01, 0x00, 0x00,
0xff, 0xff, 0xff, 0xe0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0xe0, 0x00, 0x01, 0x00, 0x00,
0xff, 0xff, 0xff, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xfd, 0xfe, 0xc0, 0x00, 0x01, 0x00, 0x00,
0xff, 0xff, 0xc0, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0xc0, 0x00, 0x01, 0x80, 0x00,
0xff, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x0c, 0x01, 0x80, 0x00,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x40, 0x0f, 0x81, 0x80, 0x00,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x40, 0x0f, 0xe1, 0x80, 0x00};
static PalI2C_HandleTypeDef hi2c1;
static PalOled_HandleTypeDef holed;
int main(void)
{
PAL_Init();
//初始化iic
hi2c1.Init.I2Cx = I2C1;
hi2c1.Init.I2C_ClockSpeed = 400000;
hi2c1.Init.I2C_DutyCycle = I2C_DutyCycle_2;
PAL_I2C_Init(&hi2c1);
//初始化oled屏幕
holed.Init.hi2c = &hi2c1;
holed.Init.SA0 = RESET;
PAL_OLED_Init(&holed);
//生成图片
PAL_OLED_Clear(&holed);
PAL_OLED_SetPen(&holed,PEN_COLOR_WHITE,1);
PAL_OLED_SetBrush(&holed,BRUSH_BLACK);
PAL_OLED_SetCursor(&holed,0,0);
PAL_OLED_DrawBitmap(&holed,128,64,image);
PAL_OLED_SendBuffer(&holed);
while(1)
{
}
}
文章来源:https://blog.csdn.net/qq_74185687/article/details/135230196
本文来自互联网用户投稿，该文观点仅代表作者本人，不代表本站立场。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。 如若内容造成侵权/违法违规/事实不符，请联系我的编程经验分享网邮箱：chenni525@qq.com进行投诉反馈，一经查实，立即删除！
本文来自互联网用户投稿，该文观点仅代表作者本人，不代表本站立场。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。 如若内容造成侵权/违法违规/事实不符，请联系我的编程经验分享网邮箱：chenni525@qq.com进行投诉反馈，一经查实，立即删除！
最新文章
- Python教程
- 深入理解 MySQL 中的 HAVING 关键字和聚合函数
- Qt之QChar编码（1）
- MyBatis入门基础篇
- 用Python脚本实现FFmpeg批量转换
- C++常用算法库(一)——排序算法Sort
- 笨蛋学设计模式结构型模式-装饰者模式【9】
- module ‘tensorflow‘ has no attribute XXX 报错解决
- NVIDIA Jetson Nano 2GB 系列文章（9）：调节 CSI 图像质量
- MySQL数据库期末知识点总结（复习版）
- stm32学习笔记：TIIM-输入捕获
- Python两次不同的请求同一url后的响应比较获取不同处（diff、差异值）
- linux入门到精通-第六章-gdb调试器
- 2024山东养老展，2024济南养老用品展览会5月27日开幕
- 从零开始做题：逆向 ret2text level2
